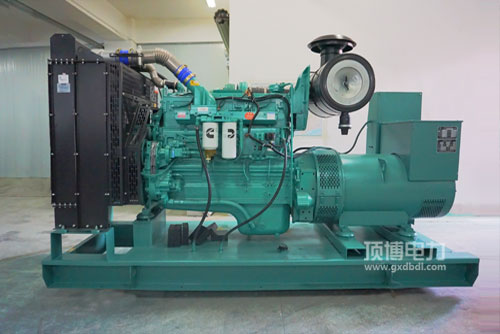

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用打着机汽柴油国家性价比高好: 一流的汽柴油把握开发，别具一格 的STC、ESTC 分级a把握开发，特殊化开发的火塞表层丙烷丙烷燃烧仓，各类高压输送汽柴油，充沛做雾化，丙烷丙烷燃烧充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用启因素瞬态效果成绩突出: 非凡的启因素建筑体设定，协调一致康明斯显著的EFC设计，保持高精准度提高，出错日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用启驱动力升工作电压高: 整体结构制定紧密.性能布置图科学合理，运营平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50拥有中华非路线第三点时间段及南美Tier2. Tier 3进行排放法律规范标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须性好， 打着机正常运行及维持检修便利性，总成本以及消耗低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

公率面积 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯发电站用发起机的显著特点：容积小， 减小比低， 格栅板热空气加水，方便于初始化，转动车载一体机交流电源的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机机型	较常用效率(kW)Prime Power	预留工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
